Overview
Rolls forged, heat-treated and machined in-house
Vikrant Forge Pvt. Ltd. (est. 1985) makes forged and machined rolls at its integrated plant near Kolkata, India. Our rolls include run-out table (ROT) rolls, segment rolls and double barrel rolls for steel plants, and geared roller shafts with pinions. Each roll is forged, heat-treated and finish-machined under one group, from steel melted at our sister mill.
Specifications
What we can make
| Parameter | Metric | Imperial |
|---|---|---|
| Diameter | 125 – 450 mm | 5″ – 18″ |
| Length | 700 – 6,000 mm | 2.4 – 19.5 ft |
| Finished weight | 50 – 5,500 kg | 100 – 12,000 lb |
| Tolerance | Grade-6 | |
| Surface finish | 0.8 µm | |
| Geometrical accuracy | 10 – 20 µm | |
| Machining | Turning, boring, drilling, milling | |
| Steel grades | 42CrMo4 / 42Cr4Mo2 · 55NiCrMoV7 · EN24 (817M40) · C45 / AISI 1045 | |
| Heat treatment | In-house, since 1997 | |
| Inspection | In-house CMM · NABL-accredited testing & calibration lab | |
| Certifications | ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018 | |
Ranges are our finish-machining capacity for long products. Send your drawing for a size outside them.
Roll types
Rolls we supply
ROT rollSteel plant

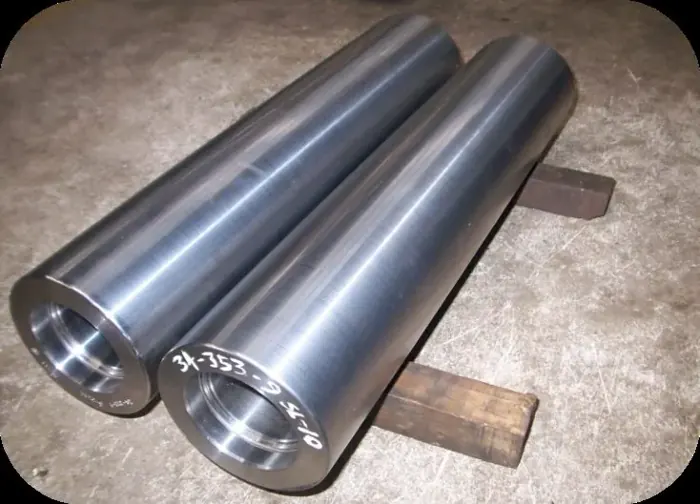

Segment rollSteel plant

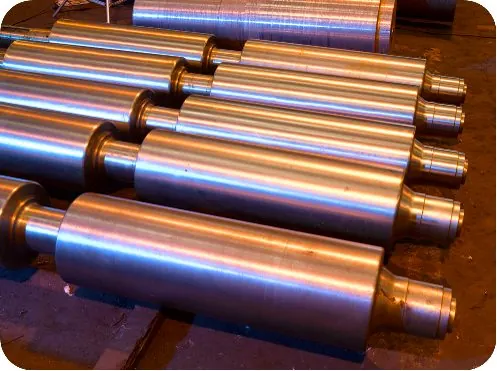

Double barrel rollSteel plant

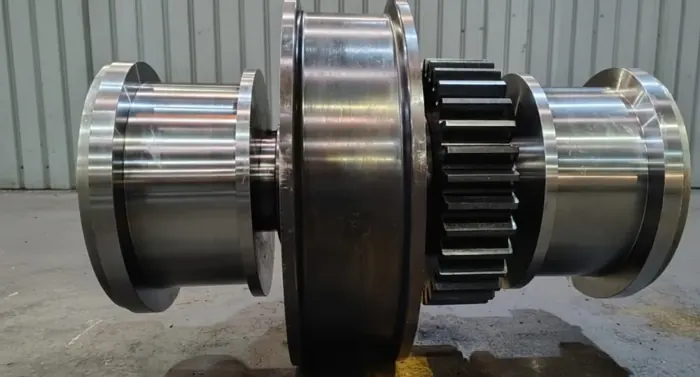

Geared roller shaftWith pinion
How we make them
From melt to dispatch
- 01
Electric arc furnaceSister mill
Eccentric bottom tapping gives cleaner steel with less slag from the first melt.
- 02
Ladle refining
Chemistry and temperature are controlled before casting.
- 03
Vacuum degassing
The melt is held under 1 Torr vacuum to remove dissolved gases.
- 04
Bottom-poured ingots
An ingot casting car pours with little turbulence for clean steel.
- 05
Forging
Manipulator-handled billets are shaped into open-die forgings.
- 06
Heat treatment
Controlled furnace cycles set the grain structure and mechanical properties.
- 07
Finish machining
CNC machining to the drawing's final dimensions.
- 08
Quality assurance
Inspection at every stage, with CMM and our NABL-accredited lab.
- 09
Dispatch
Packed and shipped to customers in India and abroad.
Quality & testing
Checked in-house
- ISO 9001:2015
- ISO 14001:2015
- ISO 45001:2018
- NABL-accredited lab
- Two Star Export House
- EEPC India
Measurement
- In-house coordinate measuring machine (CMM)
- NABL-accredited testing & calibration laboratory
Test equipment from
- Thermo Fisher Scientific · LECO
- GE Inspection Technologies · Olympus · Krautkramer
- Oxford Instruments · Raytek (Fluke) · Nucleonix
Industries
Where our parts work
- Steel plants
- Run-out tables
- Roller tables
- Grinding mills
FAQ
Buyers ask
What size rolls can Vikrant Forge make?
Rolls from Ø125 mm to Ø450 mm and 700 mm to 6,000 mm long, weighing 50 to 5,500 kg finished, machined to Grade-6 with a 0.8 µm surface finish.
Which steel grades do you use for rolls?
Rolls we have made include 42CrMo4 / 42Cr4Mo2, 55NiCrMoV7, EN24 (817M40) and C45 / AISI 1045. Tell us the grade on your drawing.
Do you supply rolls with gears or pinions?
Yes. We supply geared roller shafts with pinions as well as plain rolls.
How are the rolls inspected?
Dimensions are checked on our in-house CMM and material tests run in our NABL-accredited laboratory. The plant is ISO 9001:2015 certified.
What should I send for a quote?
Your drawing (PDF, DWG, DXF, STEP, JPG or PNG, up to 8 MB), the quantity and the steel grade. The quote form goes straight to our sales team at [email protected].
Need forged rolls?
Send your drawing and quantity. The form opens with "Request a quote" selected and goes straight to our sales team.
