Overview
Crane wheels, forged to finish under one group
Vikrant Forge Pvt. Ltd. (est. 1985) makes forged and machined crane wheels at its integrated plant near Kolkata, India. We have forged in-house since 1992, machined since 1994 and heat-treated since 1997, so one team owns the wheel from ingot to inspection. We supply single wheels, wheels with shafts, geared drive wheel assemblies and complete wheel-axle assemblies. Half of our revenue comes from exports to OEMs in more than 15 countries.
Specifications
What we can make
| Parameter | Metric | Imperial |
|---|---|---|
| Diameter | 250 – 1,400 mm | 9″ – 55″ |
| Thickness | 85 – 450 mm | 3.5″ – 18″ |
| Finished weight | 50 – 2,500 kg | 100 – 6,000 lb |
| Tolerance | Grade-7 | |
| Surface finish | 1.6 µm | |
| Geometrical accuracy | 20 – 40 µm | |
| Machining | Turning, boring, drilling | |
| Steel grades | 42CrMo4 · C55Mn75 (IS 1570 / IS 2004) · 55C8 · AISI 1055 · AISI 1060, or the grade on your drawing | |
| Heat treatment | In-house, since 1997 | |
| Inspection | In-house CMM · NABL-accredited testing & calibration lab | |
| Certifications | ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018 | |
Ranges are our finish-machining capacity for circular products. Send your drawing for a size outside them.
Wheel types
Wheels we supply
Crane wheelEOT crane

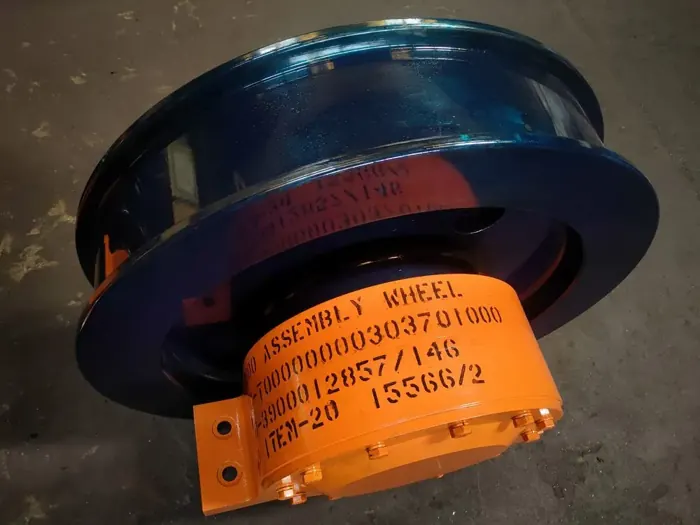

Crane wheel assemblyCement plant

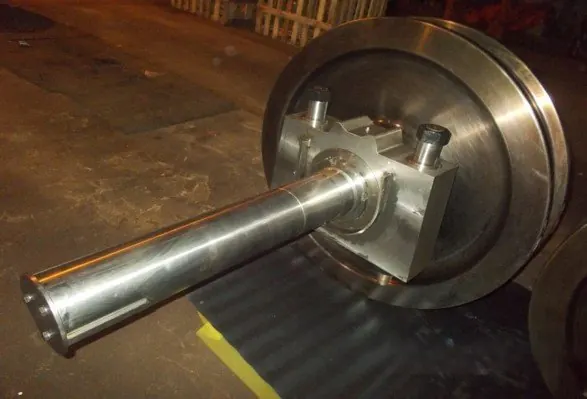

Crane wheel assemblySteel plant

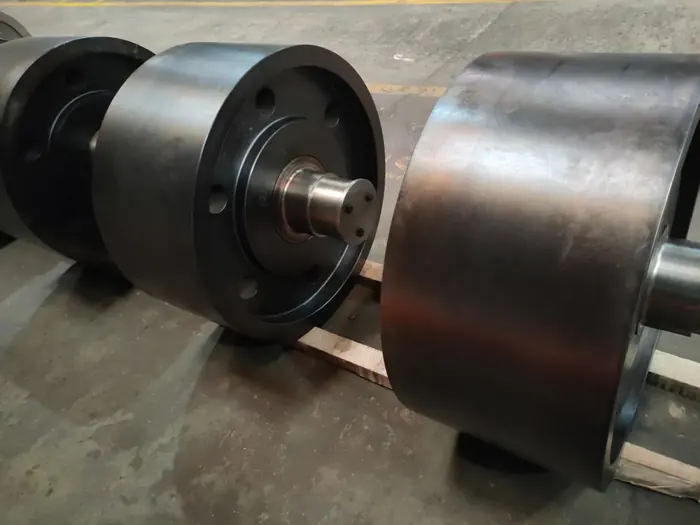

Wheel with shaftTravel and drive wheels

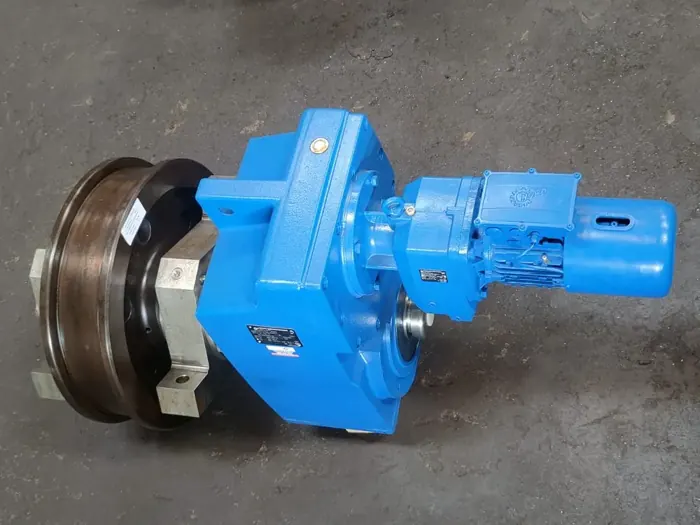

Geared drive wheel assemblyDrive end

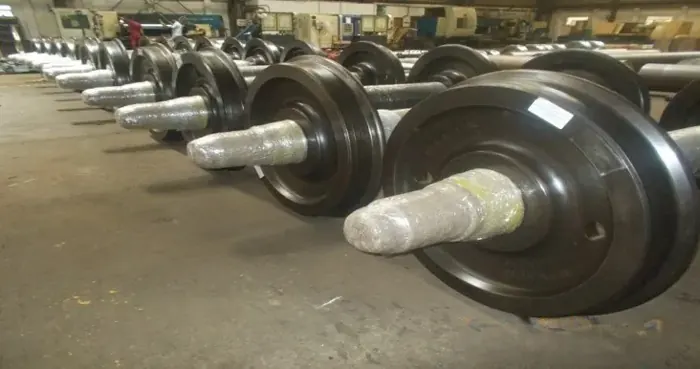

Wheel axle assemblyTransfer car, steel plant

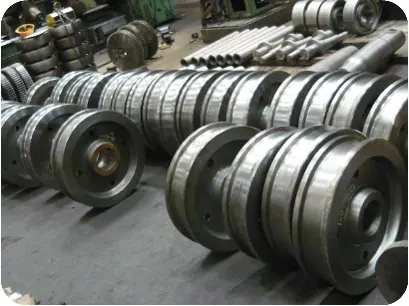

WheelStacker reclaimer

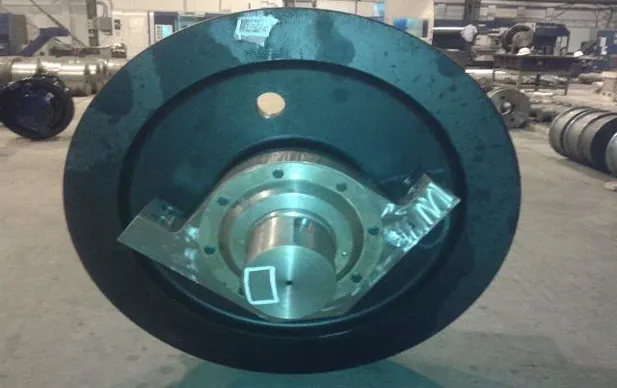

Wheel assemblyShip lift
How we make them
From melt to dispatch
- 01
Electric arc furnaceSister mill
Eccentric bottom tapping gives cleaner steel with less slag from the first melt.
- 02
Ladle refining
Chemistry and temperature are controlled before casting.
- 03
Vacuum degassing
The melt is held under 1 Torr vacuum to remove dissolved gases.
- 04
Bottom-poured ingots
An ingot casting car pours with little turbulence for clean steel.
- 05
Forging
Manipulator-handled billets are shaped into open-die forgings.
- 06
Heat treatment
Controlled furnace cycles set the grain structure and mechanical properties.
- 07
Finish machining
CNC machining to the drawing's final dimensions.
- 08
Quality assurance
Inspection at every stage, with CMM and our NABL-accredited lab.
- 09
Dispatch
Packed and shipped to customers in India and abroad.
Quality & testing
Checked in-house
- ISO 9001:2015
- ISO 14001:2015
- ISO 45001:2018
- NABL-accredited lab
- Two Star Export House
- EEPC India
Measurement
- In-house coordinate measuring machine (CMM)
- NABL-accredited testing & calibration laboratory
Test equipment from
- Thermo Fisher Scientific · LECO
- GE Inspection Technologies · Olympus · Krautkramer
- Oxford Instruments · Raytek (Fluke) · Nucleonix
Industries
Where our parts work
- EOT cranes
- Steel plants
- Cement plants
- Steel plant transfer cars
- Stacker reclaimers
- Ship lifts
FAQ
Buyers ask
What size crane wheels can Vikrant Forge make?
Wheels from Ø250 mm to Ø1,400 mm, 85 to 450 mm thick, weighing 50 to 2,500 kg finished, machined to Grade-7 with a 1.6 µm surface finish.
Which steel grades do you use for crane wheels?
Most often 42CrMo4, C55Mn75, 55C8, AISI 1055 and AISI 1060. We also work to the grade given on your drawing.
Do you supply complete wheel assemblies?
Yes. Besides single wheels we supply wheels with shafts, geared drive wheel assemblies and wheel-axle assemblies for cranes and steel plant transfer cars.
How are the wheels inspected?
Every stage is inspected. Dimensions are checked on our in-house CMM and material tests run in our NABL-accredited laboratory. The plant is ISO 9001:2015 certified.
What should I send for a quote?
Your drawing (PDF, DWG, DXF, STEP, JPG or PNG, up to 8 MB), the quantity and the steel grade. The quote form goes straight to our sales team at [email protected].
Need crane wheels?
Send your drawing and quantity. The form opens with "Request a quote" selected and goes straight to our sales team.
