Overview
Machining for forged parts
Vikrant Forge Pvt. Ltd. (est. 1985) has run its own machine shop since 1994 and added high-precision machining in 2012. The shop finishes the shafts, wheels, rolls and rings we forge: CNC turning and turn-mill centres, heavy-duty lathes and vertical turret lathes, boring, milling, drilling and broaching machines, 4-axis HMCs and VMCs, and a coordinate measuring machine for inspection.
Machining range
Machining range
| Parameter | Long products | Circular products |
|---|---|---|

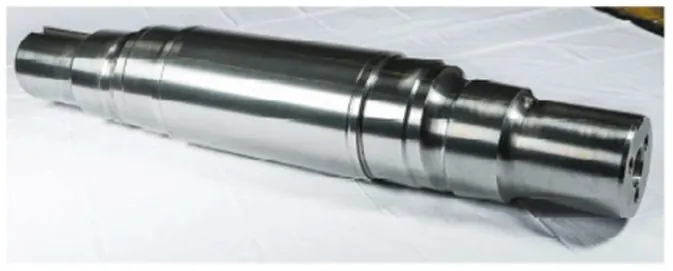

| Typical parts | Eccentric shafts, traction motor shafts, axles, rollers | Wheels, rings, gear discs, pinions, couplings |
| Minimum size | Ø125 × 700 mm long | Ø250 × 85 mm thick |
| Maximum size | Ø450 × 6,000 mm long | Ø1,400 × 450 mm thick |
| Finished weight | 50 – 5,500 kg | 50 – 2,500 kg |
| Tolerance | Grade-6 | Grade-7 |
| Surface finish | 0.8 µm | 1.6 µm |
| Geometrical accuracy | 10 – 20 µm | 20 – 40 µm |
| Operations | Turning, boring, drilling, milling | Turning, boring, drilling |
On our shop floor
Machines we run

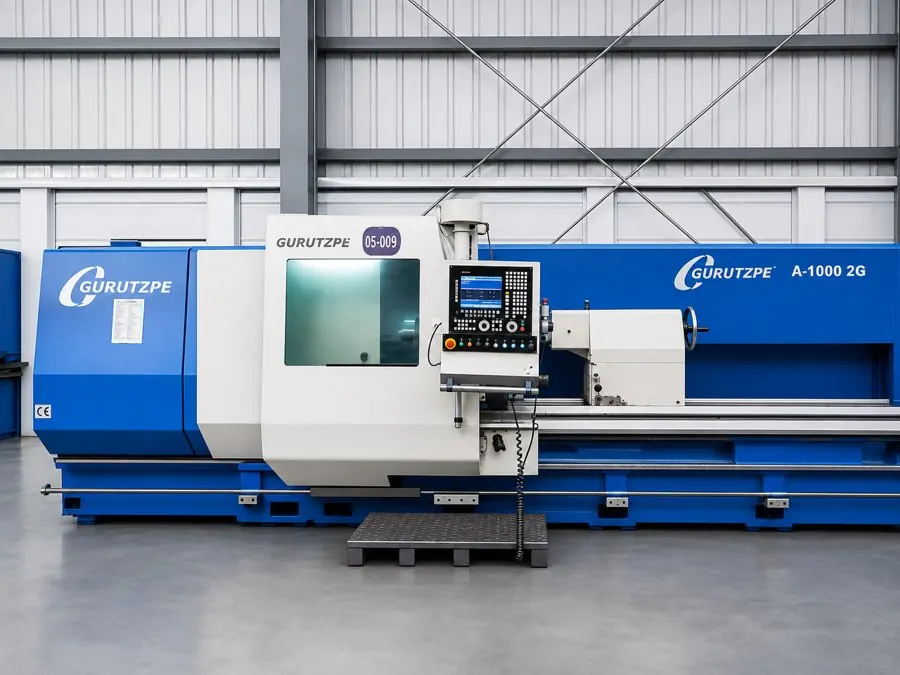

GURUTZPE lathe3 m

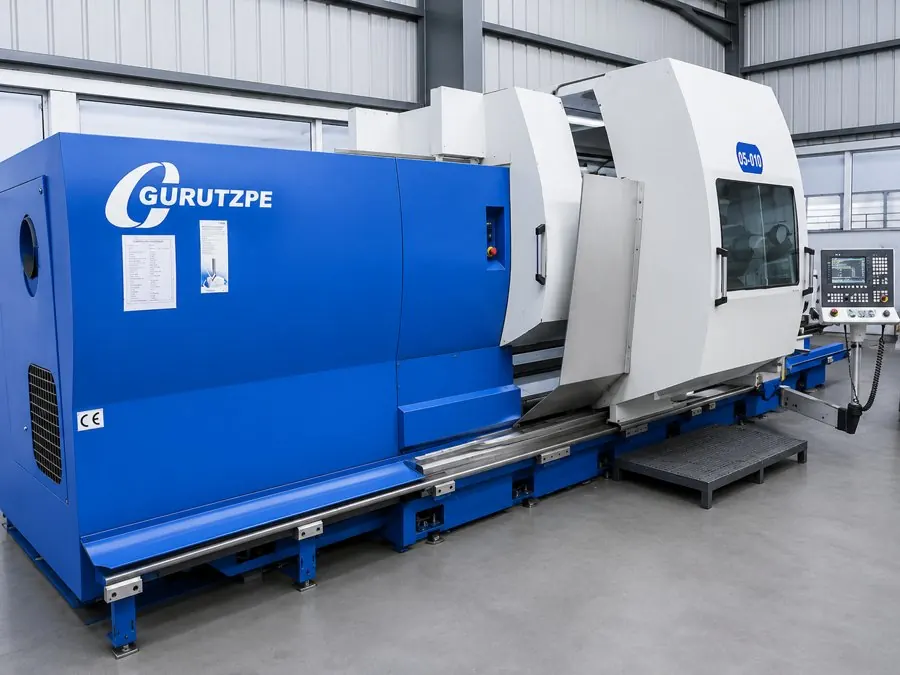

GURUTZPE lathe4 m

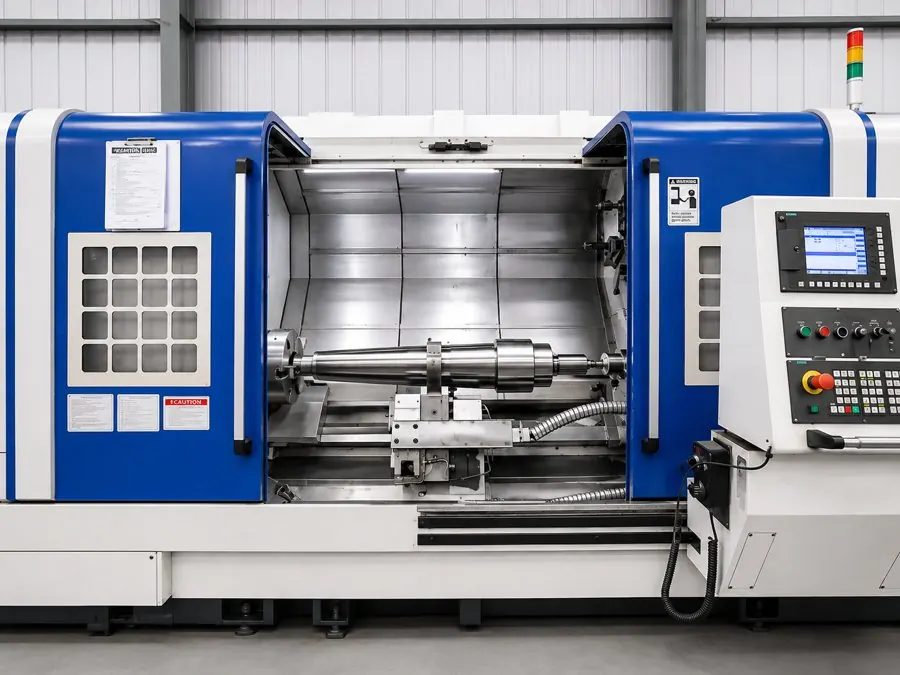

PROTECK CNC turning centre1.5 m

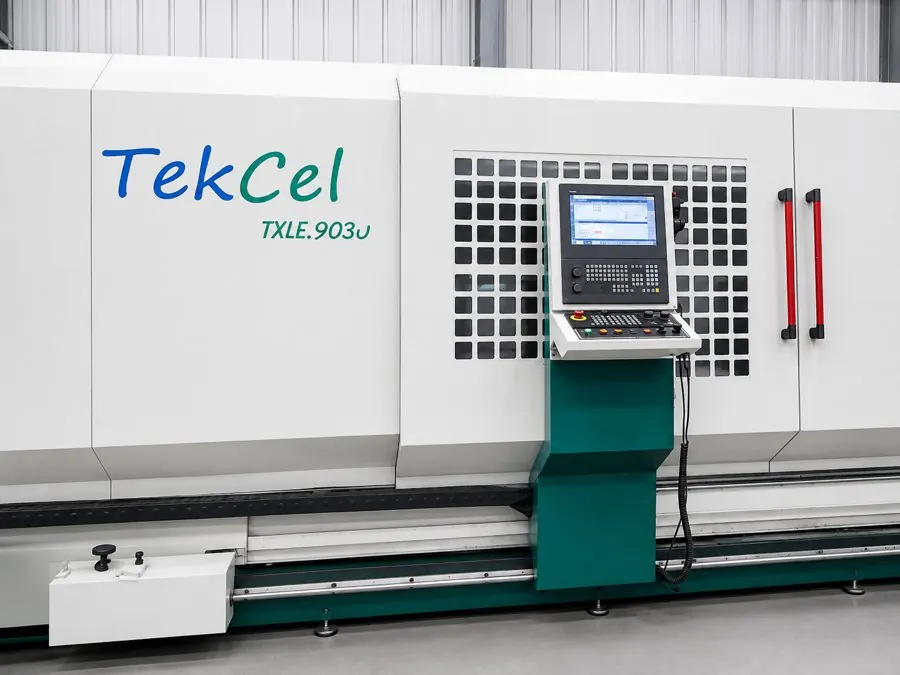

TekCel TXLE9030Turn-mill centre
WIDMA VMC 850Vertical machining centre

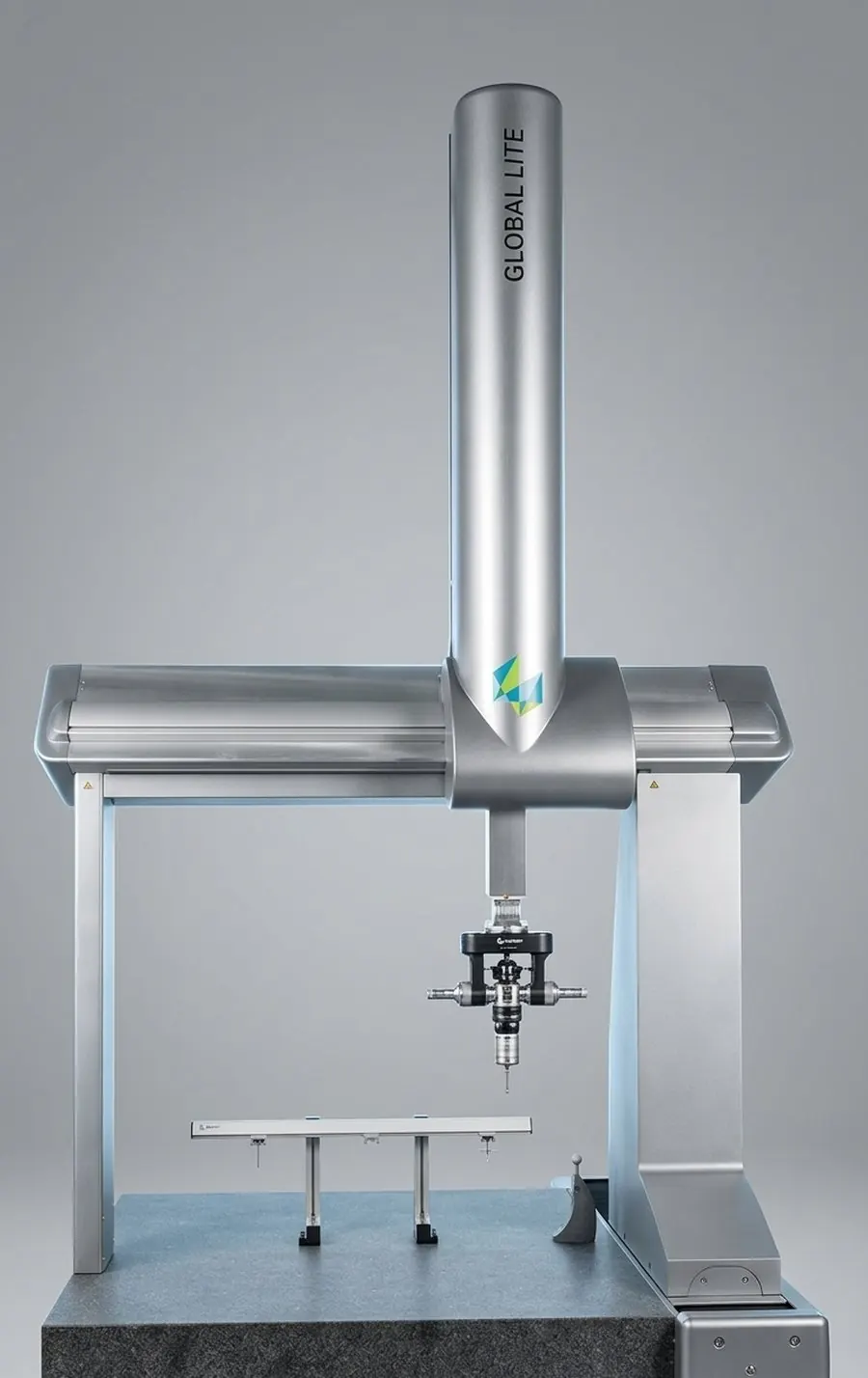

Hexagon GLOBAL LiteCMM
Key equipment
Machine types
- CNC turning & turn-mill centres
- Heavy-duty lathes & vertical turret lathes
- Boring & milling machines
- Drilling & broaching machines
- 4-axis HMC & VMC
- Coordinate measuring machine (CMM)
Quality & testing
Checked in-house
- ISO 9001:2015
- ISO 14001:2015
- ISO 45001:2018
- NABL-accredited lab
- Two Star Export House
- EEPC India
Measurement
- In-house coordinate measuring machine (CMM)
- NABL-accredited testing & calibration laboratory
Test equipment from
- Thermo Fisher Scientific · LECO
- GE Inspection Technologies · Olympus · Krautkramer
- Oxford Instruments · Raytek (Fluke) · Nucleonix
Industries
Where our parts work
- Mining
- Aggregates
- Steel plants
- Railways
- Power / energy
- Material handling
FAQ
Buyers ask
What is the largest part Vikrant Forge can machine?
Long parts up to Ø450 mm and 6,000 mm long (5,500 kg), and circular parts up to Ø1,400 mm and 450 mm thick (2,500 kg).
What tolerances do you hold?
Grade-6 with a 0.8 µm surface finish and 10–20 µm geometrical accuracy on long parts; Grade-7 with 1.6 µm and 20–40 µm on circular parts.
How many machines do you have?
More than 100 machine tools, including CNC turning and turn-mill centres, heavy-duty lathes, vertical turret lathes, boring, milling, drilling and broaching machines, and 4-axis HMCs and VMCs.
How are machined parts inspected?
On a Hexagon GLOBAL Lite coordinate measuring machine, with material tests in our NABL-accredited laboratory.
What should I send for a quote?
Your drawing (PDF, DWG, DXF, STEP, JPG or PNG, up to 8 MB), the quantity and the steel grade. The quote form goes straight to our sales team at [email protected].
Need large parts machined?
Send your drawing and quantity. The form opens with "Request a quote" selected and goes straight to our sales team.
